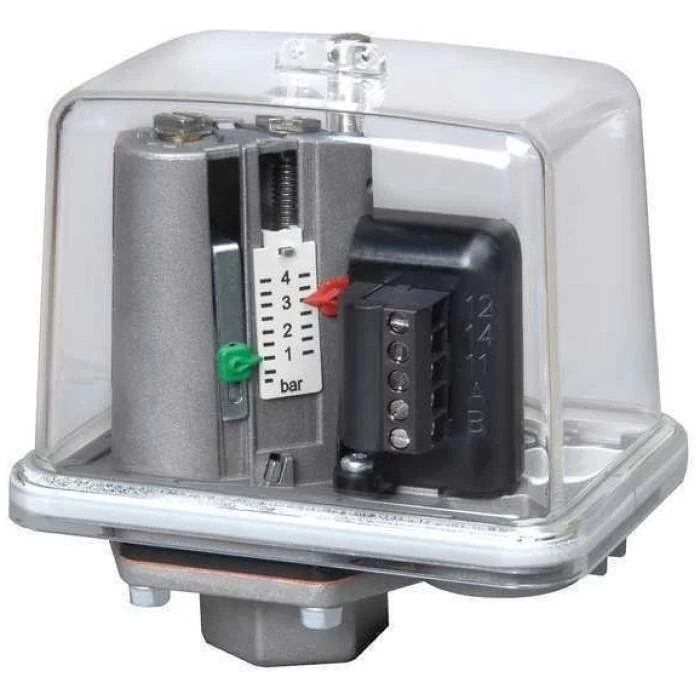

Pressostato per aria/acqua ff44

Descrizione

Rated operational current ie ac 1 [ue=240 v (1~)] 10 a
rated operational current ie ac 15 [ue=240 v (1~)] 4 a
rated operational current ie dc 13 [ue=240 v (1~)] 0,1 a
permissible motor rating (1~ 230 v) 0,55 kw
motor switching capacity (ul 508, csa 22.2) [ue=125 vac] 0,5 hp
motor switching capacity (ul 508, csa 22.2) [ue=250 vac ] 0,5 hp
rated operational current ie [(ul 508, csa 22.2) ue=250 vac] 15 a
rated operational current ie [(ul 508, csa 22.2) ue=12 vdc] 6 a
vibration resistance (10 bis 1000 hz) 4g
degree of protection acc. to din 40 050/iec 529 (with rubber grommets) ip 54
degree of protection acc. to din 40 050/iec 529 (with cable glands m20) ip 65
ambient temperature range – 20 °c .. + 70 °c
cross-sections [cage clamp (without cable end sleeve)] 1,5 mm2
cross-sections (screw clamp) 2,5 mm2
